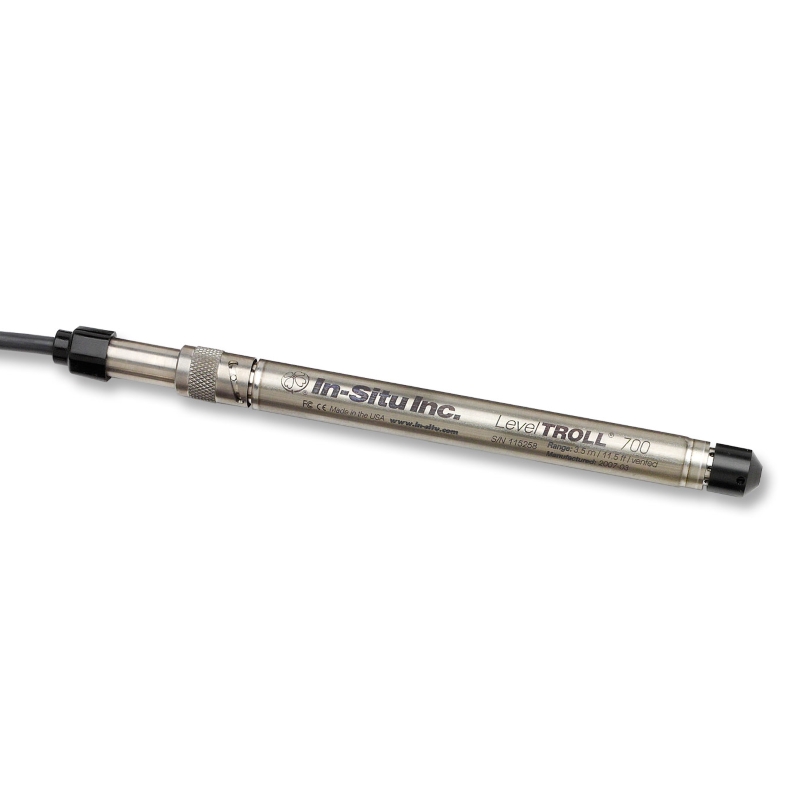

In-Situ LevelTROLL 700 Pressure Transducer Rental
In-Situ LevelTROLL 700 Pressure Transducer Rental
- Wide variety of applications for use, including aquifer pump and slug testing.
- 0.72" diameter housing allows the transducer to fit into 1" wells and larger.
- 4 MB memory stores up to 350,000 data points, captures up to 4 data points per second.
- 30 PSI (69 feet depth) and 100 PSI (231 feet depth) vented models available.
- Win-Situ 5 software included for data display, download, and export.
Accessories
Simultaneously measures pressure, temperature, depth and open channel flow (based on pressure). Choose the titanium Level TROLL® 700 instrument when you need a water level instrument with exceptional performance. Professional logging options expand functionality includes linear average, step linear, true logarithmic, and fast linear (4x/second) logging in addition to standard linear, fast linear, and event. The LevelTroll has a fast logging rate of 4 logs per second. The "Pause" and "Restart" logging features let you restart logarithmic sampling within the same file. It is easily connected for use with your laptop, or rent the durable RuggedReader® handheld PC for instrument setup and field tests.
Sensor | Accuracy | Range (PSIG) | Resolution |
---|---|---|---|
Pressure | ± 0.05% FS (@ 15°C) ± 0.1% FS (@ 0 to +50°C) ± 0.25% FS typical (@ -20 to 0 & +50 to +80°C) |
5, 15, 30, 100, 300, 500 Max: 2X Range Burst: 3X Range |
± 0.005% FS or better |
Temperature | ± 0.1°C | -20 to 80°C | 0.01°C |
Operating Temperature | -20 to 80°C (-4 to 176°F) |
---|---|
Storage Temperature | -40 to 80°C (-40 to 176°F) |
Outer Diameter | 18.3 mm (0.72 in) |
Length | 21.6 cm (8.5 in) |
Weight | 0.197 kg (0.43 lb) |
Materials | Titanium, Black Delrin® |
Internal Battery | 3.6V lithium |
Battery Life | 5 yrs or 2M readings (1 reading = time plus all available parameters read from device or logged) |
Real-Time Reading Rate | 1 per second |
Memory/Data Points | 4 MB / 350,000 (1 data point = time plus one parameter in a data log) |
Fastest Logging Rate | 4 per second |
Max. no. of logs | 50 |
Log Types | Linear, Fast Linear, Event, Linear Average, Step Linear, True Logarithmic |
Real-Time Clock | accurate to 1 second per day |
Pressure Sensor | Silicon strain gauge |
- LevelTroll 700 (30 or 100 PSI)
- Cable (50 and 100 ft Increments)
- Connection Adapters
- Hard Case
- Instruction Manual
- WinSitu 5 Software
