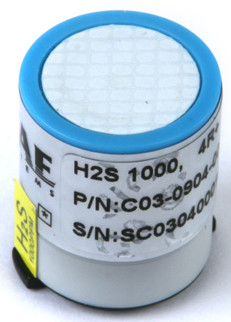

RAE Systems H2S Extended Range Sensor C03-0904-000
RAE Systems H2S Extended Range Sensor C03-0904-000
| Sensor Type | Electrochemical |
| Range | 0 to 1000 ppm |
| Resolution | 1 ppm |
| Bias/Equilibration | No bias / 10 min. after installation |
| Temperature Range | -4° F to 122° F (-20° C to 50° C) |
| Pressure Range | Atmospheric ±10% |
| Operating Humidity | 15 to 90% RH non-condensing |
| Drift | < 2% signal/month |
| Storage Life | 6 months in sealed container |
| Storage Temperature | 32° F to 68° F (0° C to 20° C) |
| Operating Life | 2 years in air |
| Warranty | 2 years from date of shipment |
| Calibration Gas | 25 ppm H2S, balance N2 |
