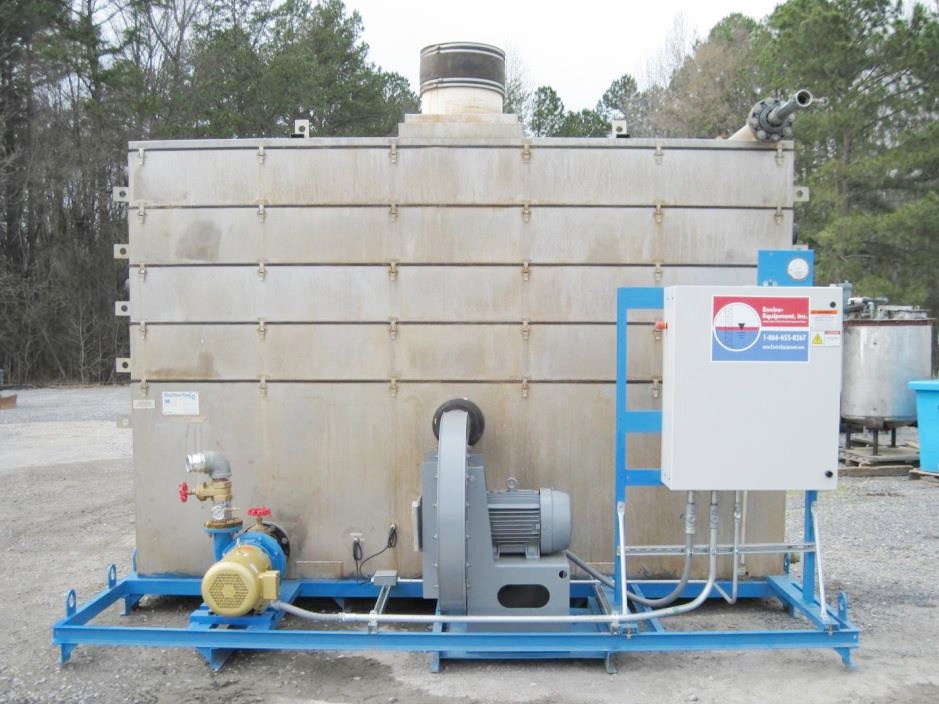

NEEP ShallowTray Air Strippers
NEEP ShallowTray air strippers are designed to strip many different volatile organic compounds from water. Many configurations are available, including one tray to six trays with capabilities of handling flow rates ranging from 0.5 GPM to 1300 GPM. Configurations are available in molded polyethylene (1300-P and 2300-P series only) or various grades of stainless steel.
|
Series |
Trays |
Flow (GPM) |
Air Flow (SCFM) |
Air Inlet |
Air Outlet |
Water Inlet |
Water Outlet (Pump) |
Water Outlet (Gravity) |
|---|---|---|---|---|---|---|---|---|
|
1300P |
1 to 4 |
0.5 to 15 |
150 - 195 |
8" |
6" |
1" FNPT |
2" FNPT |
2" FNPT |
|
2300P |
1 to 5 |
1 to 50 |
300 - 390 |
8" |
6" |
2" FNPT |
3" FNPT |
3" FNPT |
|
1300 |
1 to 6 |
0.5 to 22 |
150 - 195 |
8" |
6" |
1.25" FNPT |
2" FNPT |
2" FNPT |
|
2300 |
1 to 6 |
1 to 45 |
300 - 390 |
8" |
6" |
2" FNPT |
3" FNPT |
3" FNPT |
|
2600 |
1 to 6 |
2 to 115 |
600 - 780 |
8" |
8" |
2" FNPT |
4" FNPT |
4" FLG |
|
3600 |
1 to 6 |
3 to 160 |
900 - 1170 |
8" |
10" |
3" FNPT |
4" FNPT |
6" FLG |
|
31200 |
1 to 6 |
6 to 425 |
1800 - 2340 |
10" |
16" |
4" FLG |
4" FNPT |
8" FLG |
|
41200 |
1 to 6 |
8 to 550 |
2400 - 3120 |
10" |
18" |
6" FLG |
4" FNPT |
10" FLG |
|
61200 |
1 to 6 |
12 to 1000 |
3600 - 460 |
12" |
18" |
8" FLG |
4" FNPT |
12" FLG |
|
81200 |
1 to 6 |
16 to 1300 |
4800 - 6240 |
12" |
18" |
8" FLG |
4" FNPT |
12" FLG |
